Annexin V

A cellular protein for detection of apoptotic cells

概要技术资料数据及文献

概要

Annexin V is a member of the annexin family of proteins that bind to membrane phospholipids in the presence of calcium. This dye has high affinity for phosphatidylserine (PS) that is present in the inner leaflet of the plasma membrane. During early-stage cell apoptosis, PS is translocated from the inner to the outer leaflet of the plasma membrane, exposing it to the external environment. Annexin V, a characteristic marker for early cell apoptosis, detects the translocation of PS to the external environment.
Annexin V is used along with viability dyes such as 7-AAD (Catalog #75001) or Propidium Iodide (Catalog #75002). The process of PS translocation occurs prior to the loss of membrane integrity. Therefore, as cells progress through apoptosis and towards necrosis, the cell membrane is compromised and consequently, viability dyes pass into the cell. Thus, cells undergoing early apoptosis stain positive for Annexin V and negative for viability dyes, while apoptotic death or necrosis is characterized by positive staining for both Annexin V and the viability dye.

APC, FITC, PE

Flow Cytometry

Immunology

技术资料

Document Type	产品名称	Catalog #	Lot #	语言
Product Information Sheet	Annexin V, APC	100-0328, 100-0329	All	English
Product Information Sheet	Annexin V, PE	100-0330, 100-0331	All	English
Product Information Sheet	Annexin V, FITC	100-0332, 100-0333	All	English
Safety Data Sheet	Annexin V, APC	100-0328, 100-0329	All	English
Safety Data Sheet	Annexin V, PE	100-0330, 100-0331	All	English
Safety Data Sheet	Annexin V, FITC	100-0332, 100-0333	All	English

数据及文献

Data

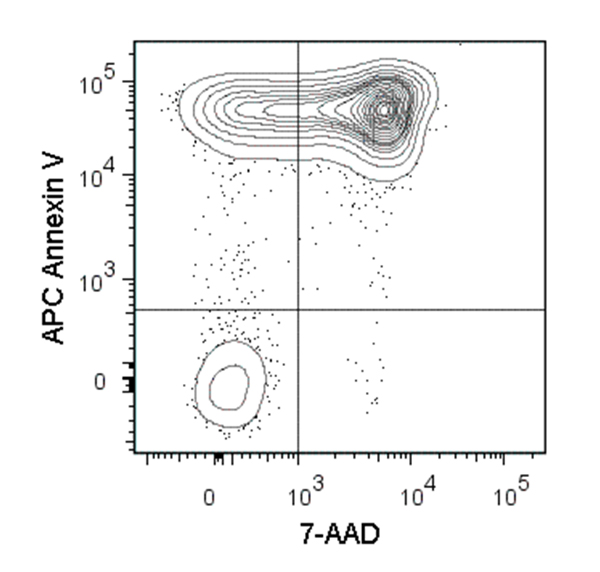

Figure showing flow cytometry analysis of C57BL/6 mouse thymocytes incubated at 37°C with 1 µM dexamethasone overnight. Cells were harvested and labeled with APC Annexin V and 7-AAD.

Figure 1. Data for Annexin V, APC

Flow cytometry analysis of C57BL/6 mouse thymocytes incubated at 37°C with 1 µM dexamethasone overnight. Cells were harvested and labeled with APC-conjugated Annexin V and 7-AAD (Catalog #75001).

Figure showing flow cytometry analysis of Con-A stimulated (3 days) C57BL/6 mouse splenocytes labeled with Anti-Mouse CD152 (CTLA-4) Antibody, Clone UC10-4F10-11, PE or an Armenian hamster IgG, PE isotype control antibody.

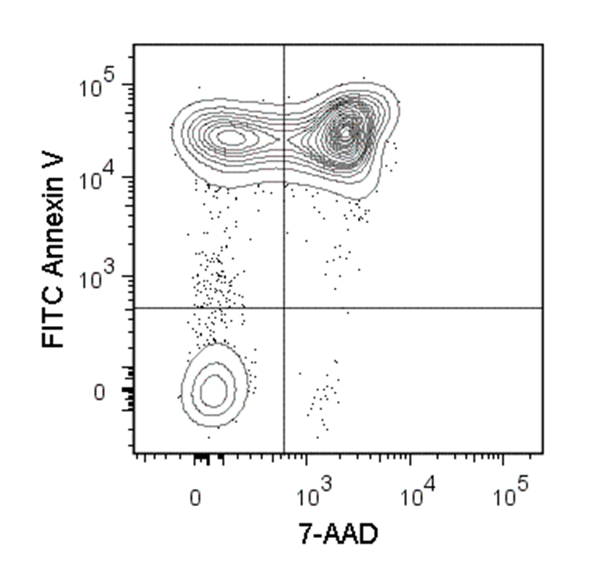

Figure 2. Data for Annexin V, FITC

Figure showing flow cytometry analysis of C57BL/6 mouse thymocytes incubated at 37°C with 1 µM dexamethasone overnight. Cells were harvested and labeled with FITC Annexin V and 7-AAD.

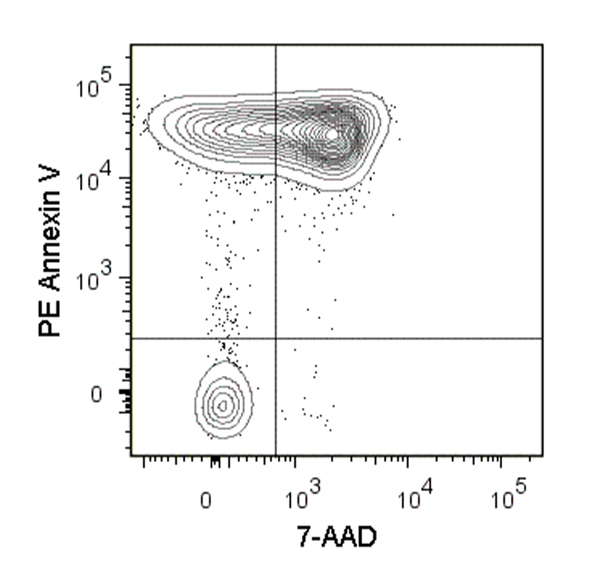

Figure 3. Data for Annexin V, PE

Figure showing flow cytometry analysis of C57BL/6 mouse thymocytes incubated at 37°C with 1 µM dexamethasone overnight. Cells were harvested and labeled with PE Annexin V and 7-AAD.
