StemSpan™ T Cell Generation Kit

For expansion and differentiation of human CD34+ hematopoietic progenitor cells to T cells
概要
StemSpan™ T Cell Generation Kit has been developed to differentiate CD34+ cells isolated from cord blood (CB) to T cells, without use of stromal cells. This kit typically promotes the expansion of thousands of CD3+TCRαβ+ T cells in cultures initiated with CD34+ human CB cells. At 6 weeks, the majority of these cells are CD4+CD8+ double-positive (DP) cells, and can mature to CD8+ single-positive (CD8 SP) T cells after an additional week of stimulation.

StemSpan™ Lymphoid Progenitor Expansion Supplement (10X) contains a combination of recombinant human cytokines and other additives formulated to selectively promote the expansion and differentiation of CD34+ cells isolated from human CB samples to CD7+CD5+ progenitor T (pro-T) cells. Additionally, StemSpan™ T Cell Progenitor Maturation Supplement (10X) enables further maturation of pro-T cells to DP cells. It also supports maturation of DP cells to CD8 SP T cells with additional stimuli. StemSpan™ Lymphoid Progenitor Expansion Supplement (10X) and StemSpan™ T Cell Progenitor Maturation Supplement (10X) are intended for use in combination with StemSpan™ SFEM II medium, and on plates coated with StemSpan™ Lymphoid Differentiation Coating Material (100X).
Components
• StemSpan™ SFEM II, 2 x 100 mL
• StemSpan™ Lymphoid Progenitor Expansion Supplement (10X), 5 mL
• StemSpan™ Lymphoid Differentiation Coating Material (100X), 2 x 0.25 mL
• StemSpan™ T Cell Progenitor Maturation Supplement (10X), 12.5 mL
Subtype
Specialized Media, Supplements
Cell Type
Hematopoietic Stem and Progenitor Cells, T Cells
Species
Human
Application
Cell Culture, Differentiation, Expansion
Brand
StemSpan
Area of Interest
Cancer Research, Cell Therapy, Immunology, Stem Cell Biology
Formulation
Serum-Free
数据及文献

Data

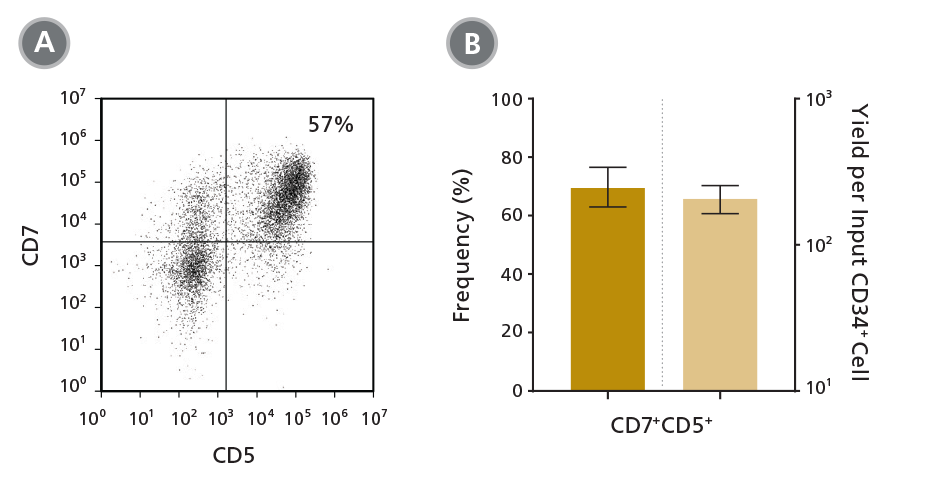

Figure 1. Frequency and Yield of CD7+CD5+ Pro-T Cells After 14 Days of Culture

CB-derived CD34+ cells (freshly isolated or frozen) were cultured for 14 days in StemSpan™ SFEM II containing Lymphoid Progenitor Expansion Supplement (Catalog #09915) on plates coated with Lymphoid Differentiation Coating Material (Catalog #09925). Cells were harvested and analyzed for CD7 and CD5 expression by (A) flow cytometry. The (B) average frequency of viable CD7+CD5+ pro-T cells on day 14 was 70%, with ~200 CD7+CD5+ cells produced per input CD34+ cell. Shown are means with 95% confidence intervals (n = 33).

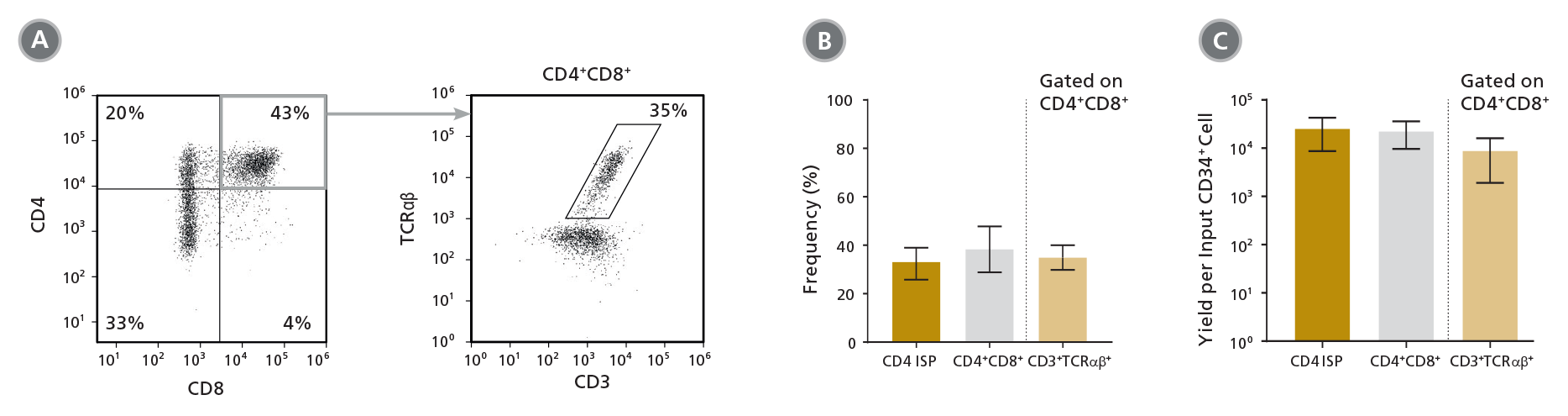

Figure 2. Frequency and Yield of CD4 ISP and CD4+CD8+ DP Cells After 42 Days of Culture

CB-derived CD34+ cells (freshly isolated or frozen) were cultured with the StemSpan™ T Cell Generation Kit (Catalog #09940) for 42 days and (A) analysed by flow cytometry for the expression of CD4, CD8, CD3 and TCRαβ. The (B) frequency and (C) yield of CD4 ISP, double-positive (CD4+CD8+) and CD3+TCRαβ+-expressing double-positive cells (CD4+CD8+CD3+TCRαβ+) are shown. On average, 38% of the total viable population were DP (CD4+CD8+), of which 35% co-expressed CD3 and TCRαβ. The yields of total DP cells and CD3+TCRαβ+ DP cells per input CD34+ cell were ~23,000 and ~9,000, respectively. Shown are means with 95% confidence intervals (n = 31).

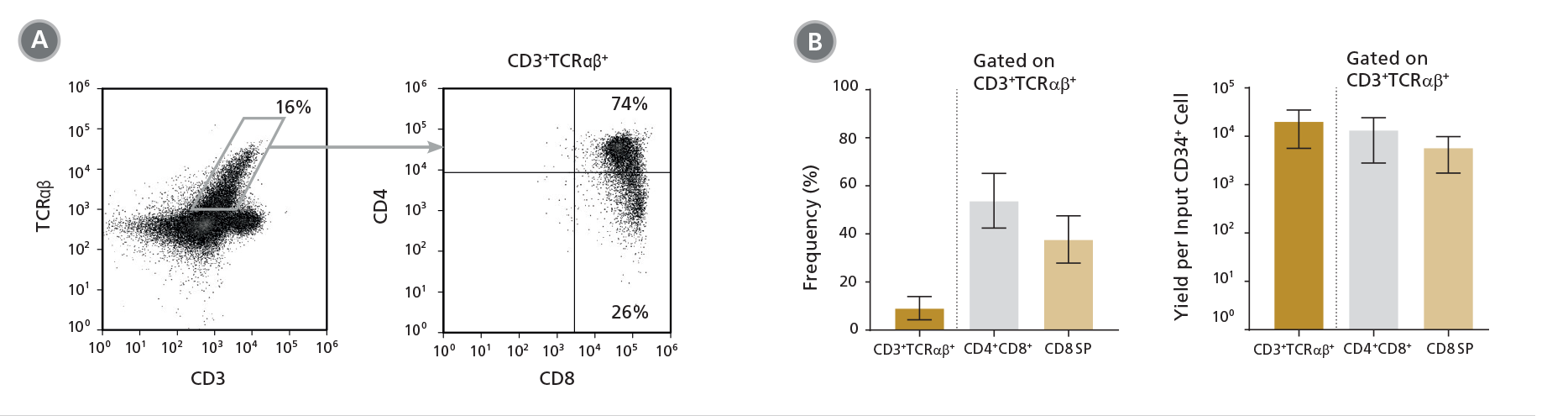

Figure 3. Frequency and Yield of CD8 SP T Cells After 49 Days of Culture

DP cells were further matured into CD8 SP T cells by culturing for an additional 7 days in StemSpan™ SFEM II with T Cell Progenitor Maturation Supplement (Catalog #09930), IL-15 (Catalog #78031) and ImmunoCult™ CD3/CD28/CD2 T Cell Activator (Catalog #10970) on coated plates. On day 49, cells were (A) analyzed by flow cytometry for the expression of CD3, TCRαβ, CD4 and CD8. The (B) frequency and yield of CD3+TCRαβ+-expressing cells and their subsets are shown. On average, 54% of the CD3+TCRαβ+ cells were DP (CD4+CD8+) and 38% were CD8 SP (CD4-CD8+). The average yield of CD8 SP T cells per input CD34+ cell was ~6,000. CD3+TCRαβ+ CD4 SP (CD4+CD8-) T cells were detected at very low frequencies (data not shown). Shown are means with 95% confidence intervals (n = 12).
