Anti-Human CD4 Antibody, Clone OKT4

Mouse monoclonal IgG2b antibody against human, rhesus, cynomolgus CD4
概要
The OKT4 antibody reacts with CD4, an ~59 kDa single-chain type 1 transmembrane glycoprotein and member of the immunoglobulin (Ig) superfamily; CD4 contains four extracellular Ig-like domains (D1 - D4). The epitope for OKT4 has been localized to the D3 domain of the protein, which has a structure resembling an Ig variable domain. CD4 is expressed at relatively high levels by most thymocytes and a subpopulation of T cells (T-helper cells), and at lower levels by peripheral blood monocytes and macrophages. CD4 binds to a non-polymorphic region of MHC II and acts as a co-receptor to the T cell receptor (TCR) in MHC II-restricted antigen recognition by enhancing the affinity of the association between the TCR and MHC II-antigen complex. CD4 also functions to amplify signals from the TCR to the cytoplasm through the interaction of its intracellular domain with cytoplasmic tyrosine kinases such as Lck. Moreover, CD4 is a receptor for human immunodeficiency virus (HIV). Binding of the OKT4 antibody to CD4 does not block HIV binding.

This antibody clone has been verified for purity assessments of cells isolated with EasySep™ kits, including EasySep™ Direct Human CD4+ T Cell Isolation Kit (Catalog #19662), EasySep™ Human CD4+ T Cell Enrichment Kit (Catalog #19052), EasySep™ Human CD3 Positive Selection Kit II (Catalog #17851) and EasySep™ Human CD4 Positive Selection Kit II (Catalog #17852).
Subtype
Primary Antibodies
Target Antigen
CD4
Alternative Names
T4
Reactive Species
Cynomolgus, Rhesus, Sooty Mangabey, Chimpanzee, Human
Conjugation
Alexa Fluor 488, APC, Biotin, FITC, PE, PerCP-Cyanine5.5, Unconjugated
Host Species
Mouse
Cell Type
T Cells, T Cells, CD4+, T Cells, Regulatory
Species
Human, Non-Human Primate
Application
Flow Cytometry, Functional Assay, Immunofluorescence, Immunohistochemistry, Immunoprecipitation
Area of Interest
Immunology, Transplantation Research
Clone
OKT4
Gene ID
920
Isotype
IgG2b, kappa
数据及文献

Data

Data for Alexa Fluor® 488-Conjugated

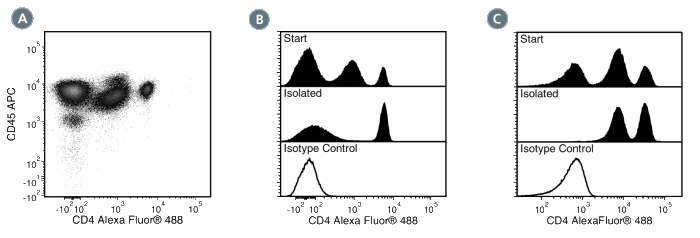

Figure 1. Data for Alexa Fluor® 488-Conjugated

(A) Flow cytometry analysis of human peripheral blood mononuclear cells (PBMCs) labeled with Anti-Human CD4 Antibody, Clone OKT4, Alexa Fluor® 488 and Anti-Human CD45 Antibody, Clone HI30, APC (Catalog #60018AZ). (B) Flow cytometry analysis of human PBMCs isolated with the EasySep™ Human CD3 Positive Selection Kit and labeled with Anti-Human CD4 Antibody, Clone OKT4, Alexa Fluor® 488. Histograms show labeling of total PBMCs (Start) and isolated cells (Isolated). Labeling with Mouse IgG2b, kappa Isotype Control Antibody, Clone MPC-11, Alexa Fluor® 488 (Catalog #60072AD) is shown in the bottom panel (solid line histogram). (C) Flow cytometry analysis of human PBMCs isolated with the EasySep™ Human CD4 Positive Selection Kit and labeled with Anti-Human CD4 Antibody, Clone OKT4, Alexa Fluor® 488. Histograms show labeling of total PBMCs (Start) and isolated cells (Isolated). Labeling with Mouse IgG2b, kappa Isotype Control Antibody, Clone MPC-11, Alexa Fluor® 488 is shown in the bottom panel (solid line histogram).

Data for APC-Conjugated

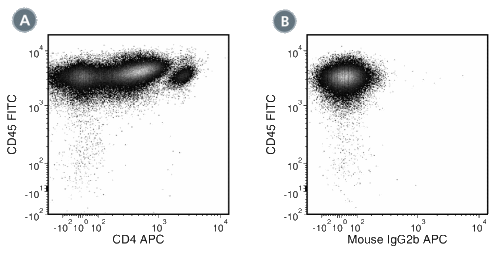

Figure 2. Data for APC-Conjugated

(A) Flow cytometry analysis of human peripheral blood mononuclear cells (PBMCs) labeled with Anti-Human CD4 Antibody, Clone OKT4, APC and Anti-Human CD45 Antibody, Clone HI30, FITC (Catalog #60018FI). (B) Flow cytometry analysis of human PBMCs labeled with Mouse IgG2b, kappa Isotype Control Antibody, Clone MPC-11, APC (Catalog #60072AZ) and Anti-Human CD45 Antibody, Clone HI30, FITC.

Data for Biotin-Conjugated

Figure 3. Data for Biotin-Conjugated

Flow cytometry analysis of human peripheral blood mononuclear cells (PBMCs) labeled with Anti-Human CD4 Antibody, Clone OKT4, Biotin followed by streptavidin (SAV) APC (filled histogram), or Mouse IgG2b, kappa Isotype Control Antibody, Clone MPC-11, Biotin (Catalog #60072BT), followed by SAV APC (solid line histogram).

Data for FITC-Conjugated

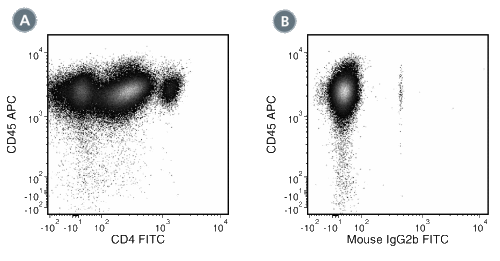

Figure 4. Data for FITC-Conjugated

(A) Flow cytometry analysis of human peripheral blood mononuclear cells (PBMCs) labeled with Anti-Human CD4 Antibody, Clone OKT4, FITC and Anti-Human CD45 Antibody, Clone HI30, APC (Catalog #60018AZ). (B) Flow cytometry analysis of human PBMCs labeled with Mouse IgG2b, kappa Isotype Control Antibody, Clone MPC-11, FITC (Catalog #60072FI) and Anti-Human CD45 Antibody, Clone HI30, APC.

Data for PE-Conjugated

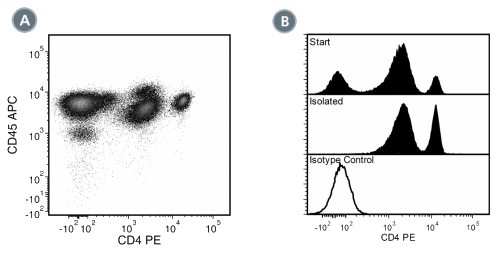

Figure 5. Data for PE-Conjugated

(A) Flow cytometry analysis of human peripheral blood mononuclear cells (PBMCs) labeled with Anti-Human CD4 Antibody, Clone OKT4, PE and Anti-Human CD45 Antibody, Clone HI30, APC (Catalog #60018AZ). (B) Flow cytometry analysis of human PBMCs isolated with the EasySep™ Human CD4 Positive Selection Kit and labeled with Anti-Human CD4 Antibody, Clone OKT4, PE. Histograms show labeling of total PBMCs (Start) and isolated cells (Isolated). Labeling with Mouse IgG2b, kappa Isotype Control Antibody, Clone MPC-11, PE (Catalog #60072PE) is shown (solid line histogram).

Data for Unconjugated

Figure 6. Data for Unconjugated

Flow cytometry analysis of human peripheral blood mononuclear cells (PBMCs) labeled with Anti-Human CD4 Antibody, Clone OKT4, followed by Goat Anti-Mouse IgG (H+L) Antibody, Polyclonal, FITC (Catalog #60138FI) (filled histogram), or Mouse IgG2b, kappa Isotype Control Antibody, Clone MPC-11 (Catalog #60072), followed by Goat Anti-Mouse IgG (H+L) Antibody, Polyclonal, FITC (solid line histogram).

Data for PerCP-Cy55-Conjugated

Figure 7. Data for PerCP-Cy55-Conjugated

Flow cytometry analysis of human peripheral blood mononuclear cells (PBMCs) labeled with Anti-Human CD4 Antibody, Clone OKT4, PerCP-Cy5.5 (filled histogram), or Mouse IgG2b, kappa Isotype Control Antibody, Clone MPC-11, PerCP-Cy5.5 (Catalog #60072PS; solid line histogram).
